CU/MICA/LSOH/OS/FRPVC
VERMIN-PROOF, UV RESISTING & FIRE RESISTING
TELEPHONE CABLE
Application:
This cable is used for communication and telephone systems and distribution cabling.

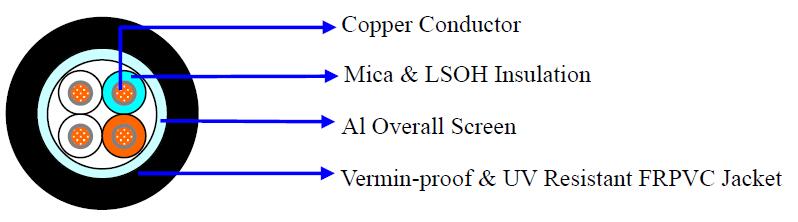

Construction:
Conductor: Plain Annealed Solid Copper to IEC 228 Class 1
Fire Barrier:Mica Tape.
Insulation: LSOH
Twisting:Two colored insulated conductors are uniformly twisted together to form a pair.
Shape:Circular
Overall Screen:Overall Polyester/ Aluminum foil screened plus 0.5mm2 copper drain wire
Outer Sheath: Vermin-proof & UV Resistant FRPVC
Sheath color: Black
Temperature Rating: 0 ℃ to 40 ℃
Bending Radius: 6 x overall diameter
Marking:
The cable is marked with white or other colors as follows:
Caledonian Cables Co., Ltd
Type and size of cable
Manufacturing date
Meter Marking
The meter mark is printed every meter with an accuracy of 0.5%.
Other printing are available according to customer request.
Table 1. Technical Data
Number of Pair |
Nom. Diameter of Conductor |
Nom. Diameter of Cable |
|---|---|---|
1 |
0.8 |
6.5 |
2 |
0.8 |
11.0 |
4 |
0.8 |
13.5 |
The data included in the present catalogue are merely indicative;
Caledonian Cables Limited reserves to itself the right to change them as its own discretion in any time.
